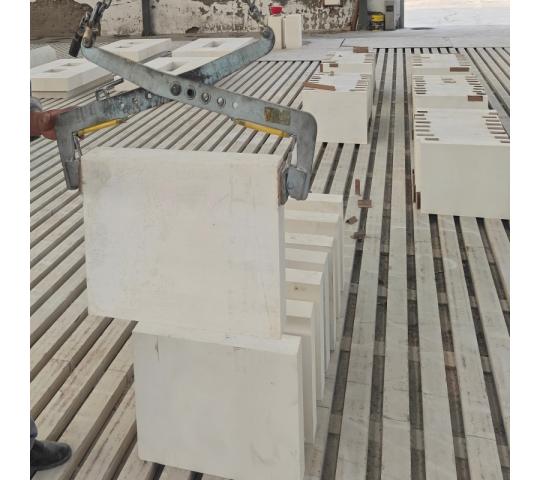

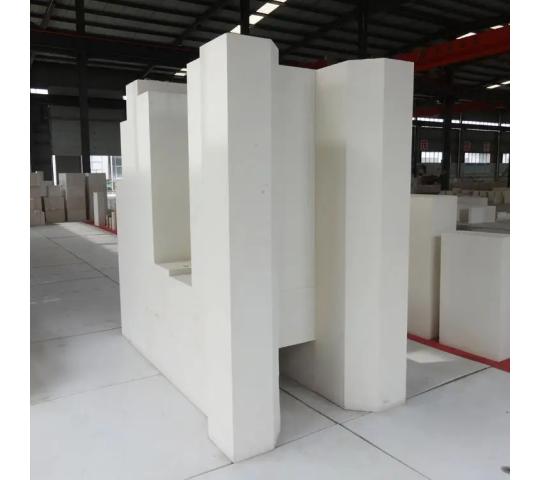

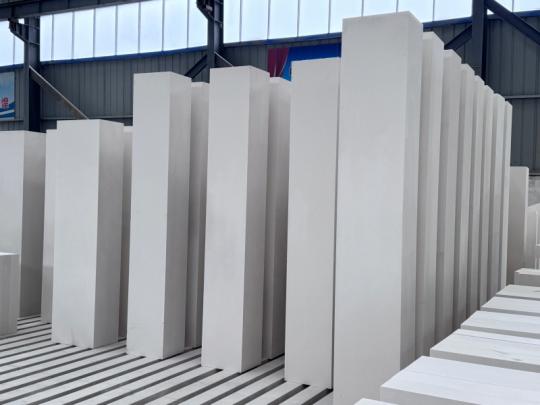

Fused Cast AZS bricks

Introduction:
AZS block is also called fused zirconia corundum brick which contains Al2O3-ZrO2-SiO2. The fused cast AZS block is made of pure aluminum powder and zircon sand (consisting of 65% zirconia and 34% SiO2). After the aluminum powder and zircon sand are melted in an electric furnace, they are cast into various molds and cooled down to become white solids. Since the content of zirconia is between 33% and 41%, the fused cast AZS blocks are divided into three types: AZS-33#, AZS-36# and AZS-41#.

Features:
t micro-structure.
erosion resistance.
thermal shock resistance.
compression resistance.

Application:
It is mainly used in glass industry.

Technical Data:

Item

CN-AZS33

CN-AZS36

CN-AZS41

Chemical Composition

Al2O3

≥50.00

≥49.00

≥45.00

(%)

ZrO2

≥32.50

≥35.50

≥40.50

SiO2

≤15.50

≤13.50

≤13.00

Na2O + K2O

≤1.30

≤1.35

≤1.30

Bulk density (g/cm3)

≥3.70

≥3.75

≥3.88

Apparent Porosity (%)

≤1.4

≤1.2

≤1.2

Cold Crushing Strength (MPa)

≥300

≥300

≥300

Exudation Temperature of GlassPhase

≥1400

≥1400

≥1410

Bubble Separation Ratio（1300℃×10h）

≤1.5

≤1.4

≤1.0

Apparent Density (g/cm3)

PT(RN RC N)

≥3.45

≥3.50

≥3.70

ZWS(RR EVF EC ENC)

≥3.60

≥3.70

≥3.90

WS( RT VF EPIC FVP DCL)

≥3.70

≥3.80

≥4.00

Grade: Fused cast AZS 33#36#41#

Delivery time: 15-20days or according to customers order quantity.

Packing: In a wooden case

Payment: T/T in advance or L/C at sight

Country: Made in China

Production process: Fused Cast

Application: mainly for glass furnaces
